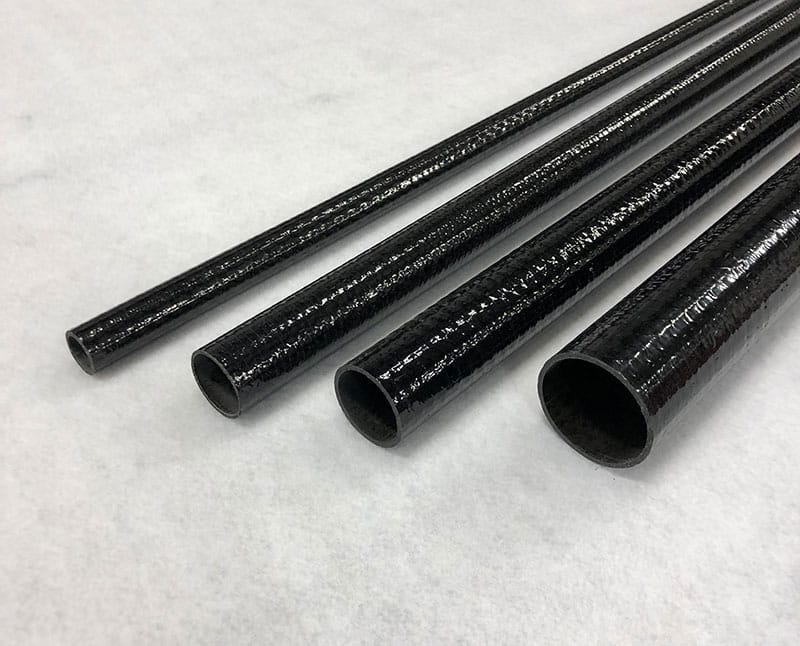

Round carbon fiber tubes Braided .5" to 2.4" ID

These tubes are built using 24K, 33Msi, medium modulus fiber from a high quality supplier. Braided carbon tubes are generally around 75% carbon on the 0 deg. axis. 15% 90 deg. (hoop) fiber. 10% +/- 45 fiber. Because of the large tows and general nature of a braid, the OD tends to be a little lumpy and bumpy with some pits and voids. OD tolerance is around +/- .020". It is a very durable, damage tolerant laminate.

Select ID	Requested Wall Thickness (inches)	Outer Diameter	Requested Length (inches)	Number of Pieces	Outside Surface
						Edit Delete
There are no Round Carbon Fiber Tubes.

Maximum number of round carbon fiber tubes reached.

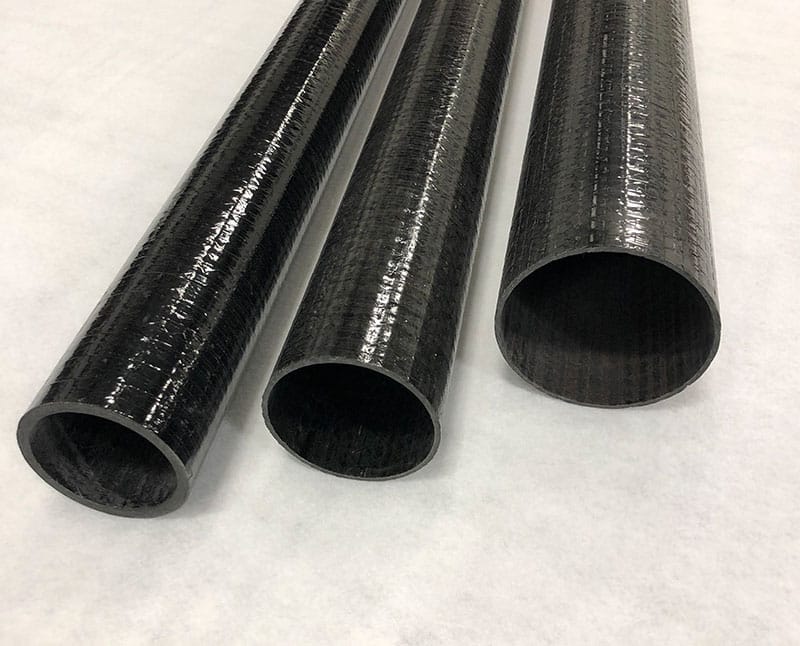

Round carbon fiber tubes Braided 2.5" to 5.5" ID

These tubes are built using 48K, 33Msi, medium modulus fiber from a high quality supplier. Braided carbon tubes are generally around 75% carbon on the 0 deg. axis. 15% 90 deg. (hoop) fiber. 10% +/- 45 fiber. Because of the large tows and general nature of a braid, the OD tends to be a little lumpy and bumpy with some pits and voids. OD tolerance is around +/- .020". It is a very durable, damage tolerant laminate.

Select ID	Requested Wall Thickness (inches)	Outer Diameter	Requested Length (inches)	Number of Pieces	Outside Surface
						Edit Delete
There are no Round Carbon Fiber Tubes Braided.

Maximum number of round carbon fiber tubes braided reached.

Round TAPERED carbon fiber tubes 1.5" to 8" ID

These tubes are built using 24K or 48K, 33Msi, medium modulus fiber from a high quality supplier. Braided carbon tubes are generally around 75% carbon on the 0 deg. axis. 15% 90 deg. (hoop) fiber. 10% +/- 45 fiber. Because of the large tows and general nature of a braid, the OD tends to be a little lumpy and bumpy with some pits and voids. The taper is built into the tooling, but a part can be positioned on the tooling to end at a larger ID

Select ID	Requested Wall Thickness (inches)	Outer Diameter	Requested Length (inches)	Number of Pieces	Outside Surface
						Edit Delete
There are no Round Tapered Carbon Fiber Tubes.

Maximum number of round tapered carbon fiber tubes reached.

Square carbon fiber tubes Braided

Depending on size, these tubes are built using 24k or 48K, 33Msi, medium modulus fiber from a high quality supplier. Braided carbon tubes are generally around 75% carbon on the 0 deg. axis. 15% 90 deg. (hoop) fiber. 10% +/- 45 fiber. Square tubes have a tendency to "ovalize" on the OD of the tube with the flats becoming a little rounded and the wall thickness pinching in the corners. This effect increases with wall thickness.

Select ID	Requested Wall Thickness (inches)	Outer Diameter	Requested Length (inches)	Number of Pieces	Outside Surface
						Edit Delete
There are no Square Carbon Fiber Tubes Braided.

Maximum number of square carbon fiber tubes braided reached.

Rectangular carbon fiber tubes Braided

Depending on size, these tubes are built using 24k or 48K, 33Msi, medium modulus fiber from a high quality supplier. Braided carbon tubes are generally around 75% carbon on the 0 deg. axis. 15% 90 deg. (hoop) fiber. 10% +/- 45 fiber. Rectangle tubes have a tendancy to "ovalize" on the OD of the tube with the flats becoming a little rounded and the wall thicnkess pinching in the corners. This effect increases with wall thickness.

Select ID	Requested Wall Thickness (inches)	Outer Diameter	Requested Length (inches)	Number of Pieces	Outside Surface
						Edit Delete
There are no Rectangular Carbon Fiber Tubes Braided.

Maximum number of rectangular carbon fiber tubes braided reached.

Your Information
Name*
First Last
Company Name
Email*
Enter Email Confirm Email
Phone*
Extension
Address
Street Address Address Line 2 City State ZIP Code

Select ID	MAX Length
14mm	11' 6"
15mm	11' 6"
16mm	11' 6"
30mm	19' 0"
0.75	23' 6"
0.875	11' 8"
1	23' 6"
1.125	12'0"
1.135	11' 8"
1.2	23' 6"
1.25	23' 6"
1.375	23' 6"
1.45	13' 6"
1.5	23' 6"
1.625	11' 6"
1.75	23' 6"
1.76	19' 6"
1.875	23' 6"
1.9	19' 6"
2	23' 6"
2.125	23' 6"
2.25	32'0"
2.4	19' 6"

Select ID	MAX Length
2.5	32'
2.75	23' 6"
2.875	20'
2.9	23' 6"
2.95	13' 6"
3	23' 6"
3.375	23'
3.4	13' 6"
3.5	23' 6"
3.75	23' 6"
3.9	11' 6"
4	23' 6"
4.25	23' 6"
4.5	23' 6"
5	23' 6"
5.1	11' 6"
5.5	23' 6"
6	30'
6.5	23' 6"
9	23' 6"

Select ID	MAX Length	Taper Length	TIP ID
1.5	24'0"	16'	.75"
1.5	18'0"	10'	.75"
1.625	31' 6"	8'	.75"
1.75	29'0"	6'	1"
2	30'0"	10'	.75"
2	10' 6"	10'	.73"
2.25	32'0"	8' 6"	1"
2.25	30'0"	7'	.875"
2.5	35'0"	11'	.75"
2.75	13' 6"	34"	1.75"
3	26' 6"	9'	1.825"
3.5	34' 6"	10'	1.625"
3.5	19'0"	2'	3"
4	27' 6"	5' 6"	2.35"
4	42' 6"	15'	1.725"
5	37' 6"	14'	2.35"
6	32' 6"	13'	3.5"
8	43'0"	30'	3.45"

Select ID	MAX Length
1.5 x 1.5	23' 6"
2.0 x 2.0	23' 6"
2.5 x 2.5	23' 6"
3.0 x 3.0	23' 6"
4.54 x 4.54	23' 6"
6 x 6	23' 6"

Select ID	MAX Length
1 x 2	19' 6"
1 x 2.5	19' 6"
1.25 x 3	19' 6"
1.75 x 3.0	19' 6"
1.87 x 3.85	19' 6"
1.97 x 4.25	19' 6"
2 x 4	19' 6"
2.51 x 3.51	19' 6"
2.6 x 3	19' 6"
3 x 6	19' 6"
